Product Description

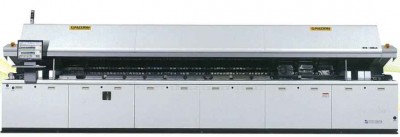

Air Reflow Oven.
Experienced a further improved next generation reflow that realizes ultra-low power consumption.
A next generation reflow product that realizes ultra-low power consumption and a high efficiency flux collecting system complying CO2 emission regulations.
Make an orderDetails
– Ultra-low power consumption
– Partial Start Up
– O2 control system offering high stability
– Temperature monitoring function
– Operation and maintenance cycle alarm function
– RTPM(Option)
Ultra-low power consumption against CO2 emission regulations. Further upgraded next generation reflow that realized the lowest N2 consumption
– Reduces power consumption at stable state
– Reduces peak power for startup (Partial Startup Mode)
– Applies built-in PSA (Option)
– Adopts new concept Flux Management System
|
System |
|
Heating zone count – Top/Bottom – 8/8 |
|
Cooling zone count – 2 |
|
Nozzle Size – M (310mm) |
|
Total Heating Length – 2590 mm |
|
Total cooling Length – 700 mm |
|
Dimension – LxWxH – 4000x1210x1450 (mm) |
|
Weight (net) – 1800Kg |
|
Cover Color – Glossy White |
|
Utility |
|
Main Power – 3P 380V |
|
Connector Location – Entrance |
|
Phase – 3 |
|
Frequency (Hz) – 60 |
|
Peak Power(Actual) – 46KW |
|
Peak Power(Partial) – 35KW |
|
Stable Power – 10KW |
|
Air |
|
Pressure/BASIC – 0,5 MPA |
|
Diameter of Hose – 12 ø (mm) |
|
Connector Location – Entrance |
|
Consumption / Basic – 35 L/min |
|
Enviornment |
|
Temperature – 20~28 ℃ |
|
Humidity – 55%↓ |
|
DUCT |
|
Entrance – 150 ø (mm) |
|
Middle(Exit) – 200 ø (mm) |
|
|
|
Conveyor Type – Chain + Anti |
|
Conveyor Height – Floor~PCB Bottom 900 ± 20 mm (Standard) |
|
Conveyor Speed – Min/Max – 0,3/1,6 M/min |
|
PCB Size |
|
Min – 50 x 50mm |
|
Max – 410 x 460mm (WxL) |
|
PCB Clearance – Upper/Bottom – 25/20mm |
|
Temp. Control Range – Min/Max – RT/350 ℃ |
|
CE Certification |
|
Accessories |
|
Computer with OS XP |
|
Main Control System – PLC OMRON |
|
Cooling Zone Method – Air |
|
UPS |
|
Tower Lamp – 3 colour |
|
Software Included |
|
MMI B/F Speed Display – Hz/RPM |
|
Weekly Timer |
|
Maintenace Alarm – Basic 10 maintenance |
|
Peak Power Control System – Partial Start |
|
Alarrn Gradual Setup |
|
B/F Motor Speed Display – Hz/RPM |
|
Blow Fan Speed Control – RPM (Herz) |
|
Software Options |
|
SMEMA |
